Yamaha Wolverine RMAX2 Demon Xtreme Heavy Duty Tie Rod Race Spec
Low stock
Couldn't load pickup availability
Description
Description

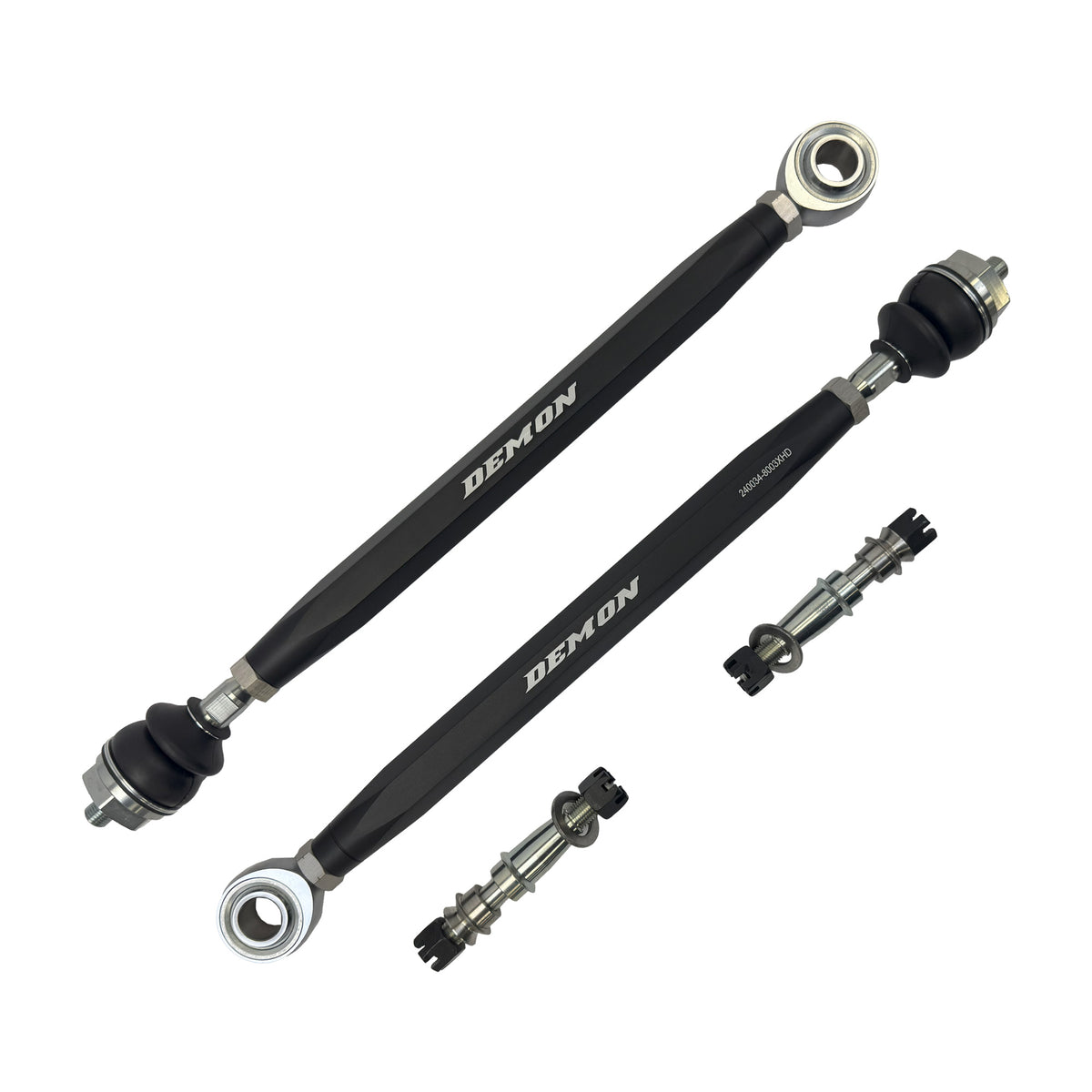

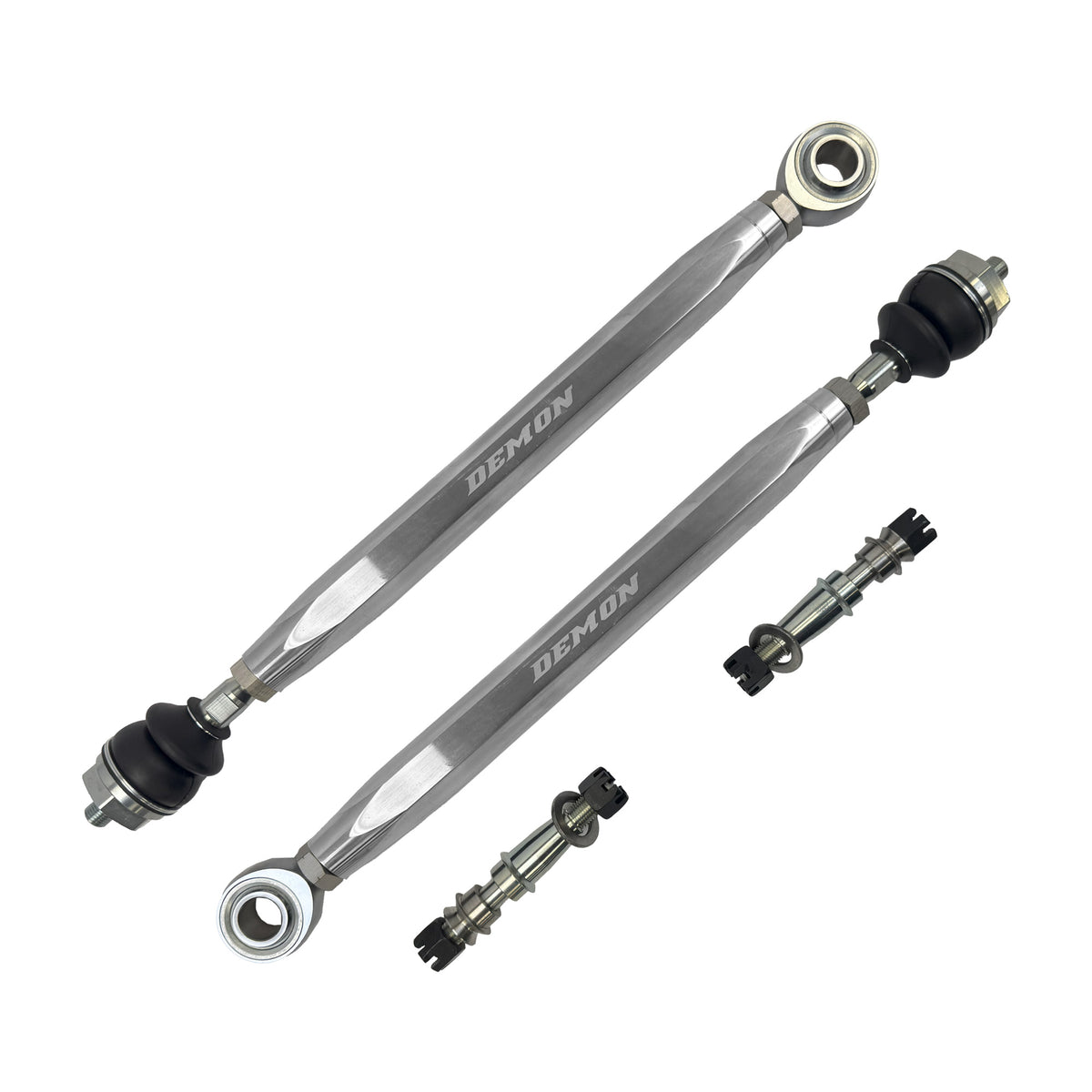

Demon X-Treme Heavy Duty Race Spec Tie Rods are engineered as a high-performance steering upgrade for your Yamaha Wolverine RMAX2, delivering exceptional strength, precision, and durability for aggressive off-road and racing applications.
Each tie rod is CNC machined from aircraft-grade 7075-T6 billet aluminum, a high-strength material known for its excellent strength-to-weight ratio and fatigue resistance. This construction provides the rigidity and durability required to handle demanding steering loads while maintaining a lightweight design.
Heavy-duty chromoly steel rod ends are chrome and zinc plated to provide additional strength and corrosion resistance in harsh off-road conditions. PTFE-lined joints provide a self-lubricating, low-maintenance design, while durable CR protective boots help shield the joints from dust, mud, water, and trail debris.
The tie rods feature opposite-direction threads at each end, allowing the front-wheel toe angle to be adjusted directly on the vehicle. Simply rotate the tie rod while your Yamaha Wolverine RMAX2 is resting on its own weight, then tighten the jam nuts to secure the adjustment.
Built to handle hard impacts, aggressive terrain, and demanding steering loads, Demon X-Treme Heavy Duty Race Spec Tie Rods give your Yamaha Wolverine RMAX2 the strength, adjustability, and reliability required for serious off-road performance.
What's in the Box:
* (2) Tie Rods
* (4) Rod Ends with Jam Nuts
* Installation Hardware, including misalignment bushings, bolts, nuts, cotter pins, and zip ties
* User Manual
Features
Features
• Made from aircraft-grade 7075 Aluminum
• 1" Oversized Hexagonal Design
• Heat treated chromoly steel inner rod end with chrome plating finish for longevity and durability
• Engineered to withstand aggressive riding and extreme conditions
• Equipped with 3-piece Chromoly PTFE-lined Heim joints capable of withstanding a radial static load of 28,000 lbs.
• High-Grade Stainless-Steel hardware and spacers
• Able to replace factory Tie Rod on a wide range of fitments, including ATV, UTV and SxS vehicle
• Easy to adjust without disassembly
Fitment
Fitment
Installation Manuals
Installation Manuals
View the installation instructions, specific to your product.
Warranty Info
Warranty Info
To view more warranty information, please see our warranty policy.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
LEARN MORE ABOUT OUR X-TREME HEAVY DUTY TIE ROD RACE SPEC
MATERIAL STRENGTH
Demon Xtreme Heavy Duty tie rods are made from 7075 aluminum, which is over 70% stronger than the tie rods of same size that are made of 6061, a commonly used material by our competitors. During our bend tests, our fully assembled tie rod can withstand over 2,200 lbs load right in the middle, and bounce back to it's original shape like nothing happened. It means you don't have to worry about bending, denting the rods or damaging the threads like you would with 6061 aluminum. 7075 aluminum excels where 6061 would fail.
BALL STUD JOINT

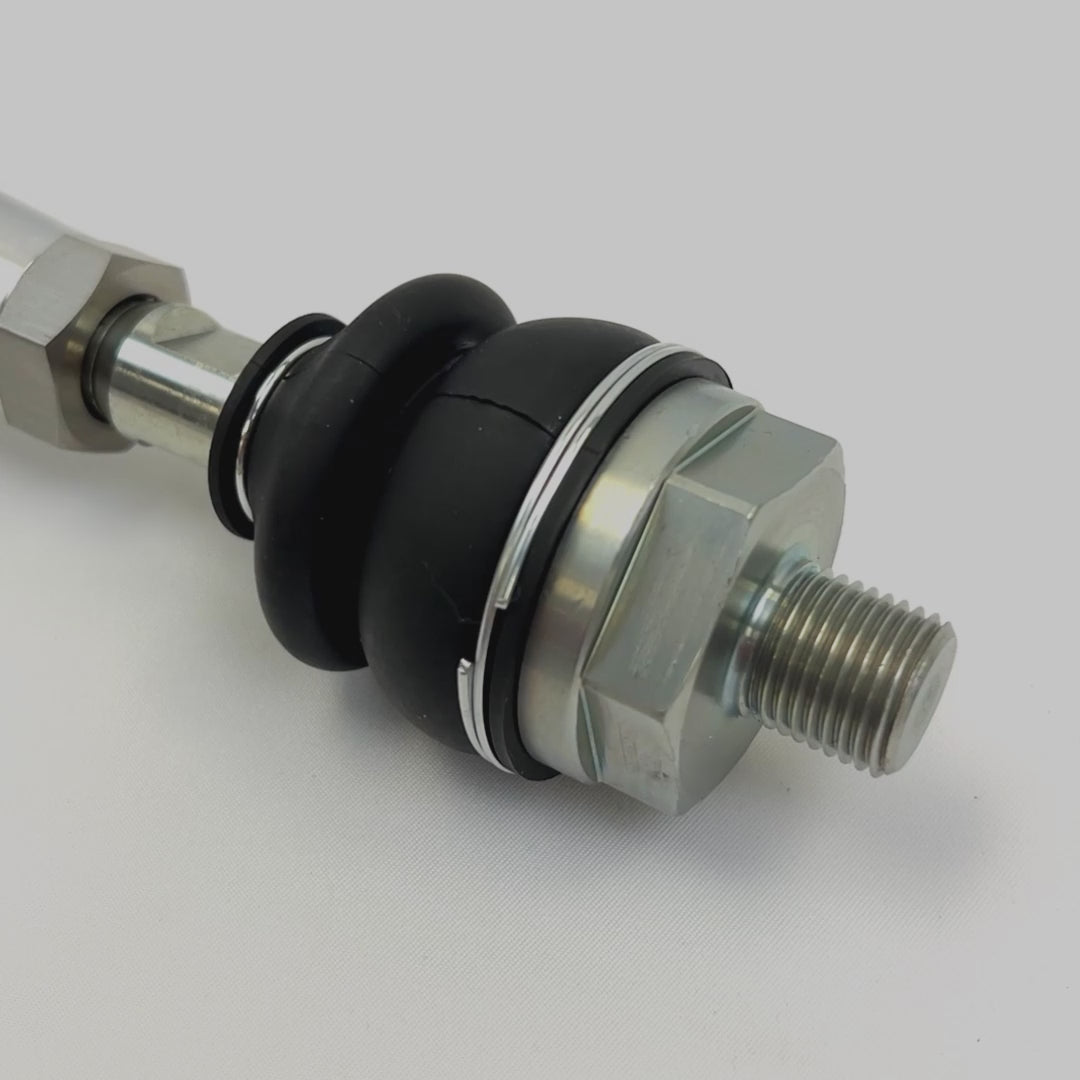

Built for strength and durability, the inner ball stud joint is crafted from 4135 Chromoly Alloy Steel. It features a maintenance-free PTFE liner for smooth performance without the need for lubrication, and an additional CR boot that provides extra protection and long-lasting reliability.

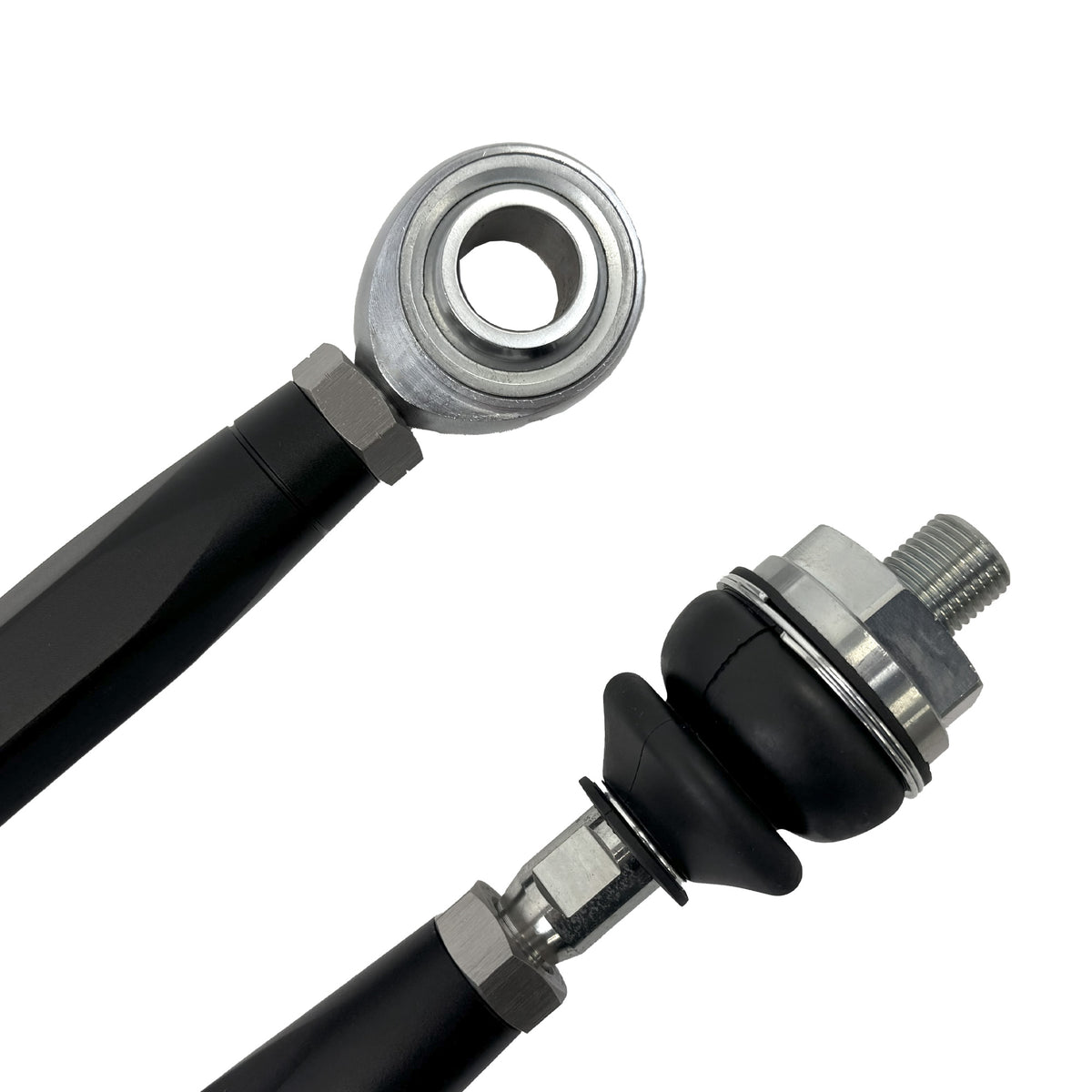

HEIM JOINT
The heim joint is engineered with a high-durability 3-piece assembly design for maximum strength. Its body is built from 4135 Chromoly Alloy Steel, while the inner ball is crafted from hardened bearing steel, polished and hard chrome plated for superior wear resistance. Featuring a maintenance-free PTFE insert, this joint delivers smooth performance without lubrication, and boasts an impressive radial static load rating of 28,080 lbs.
