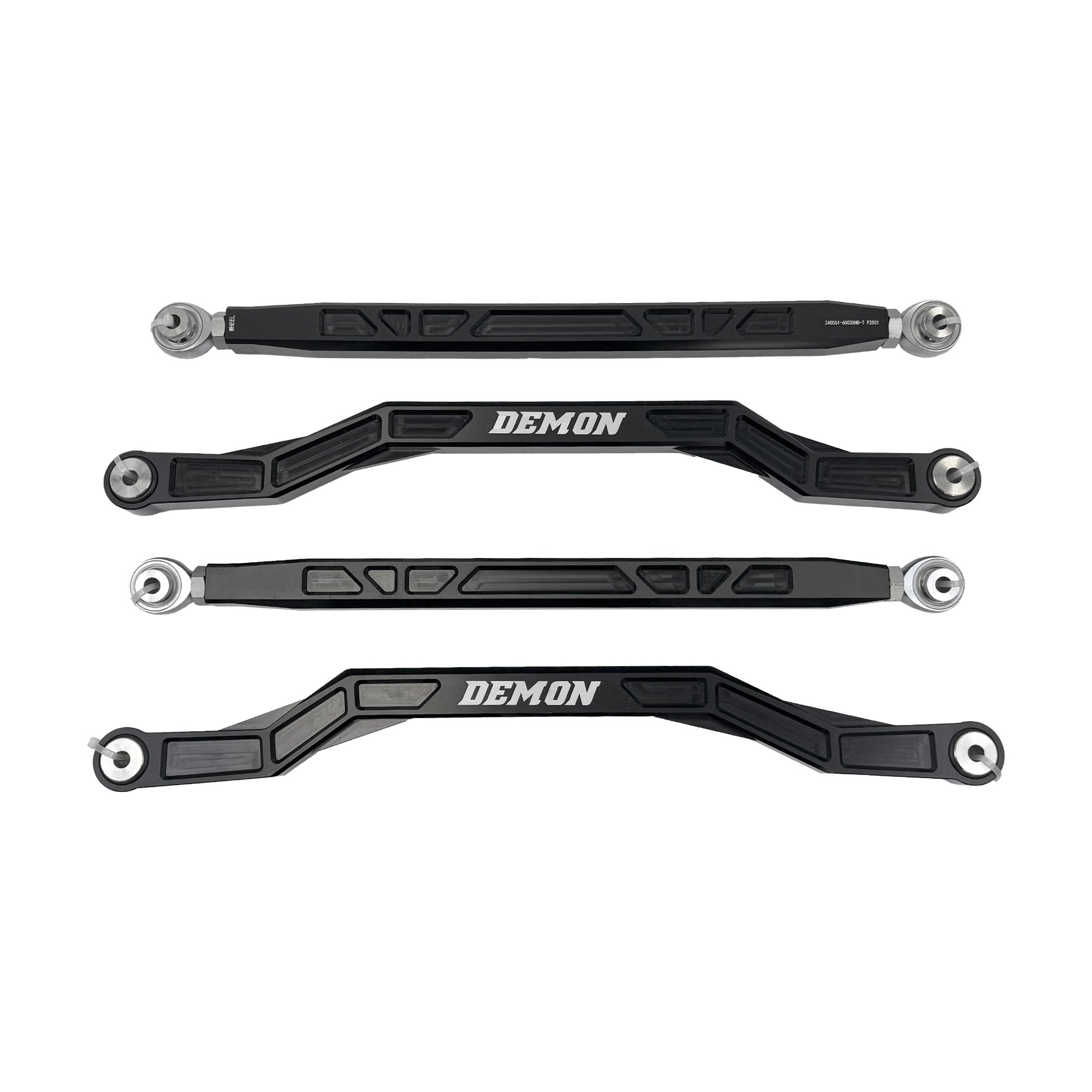

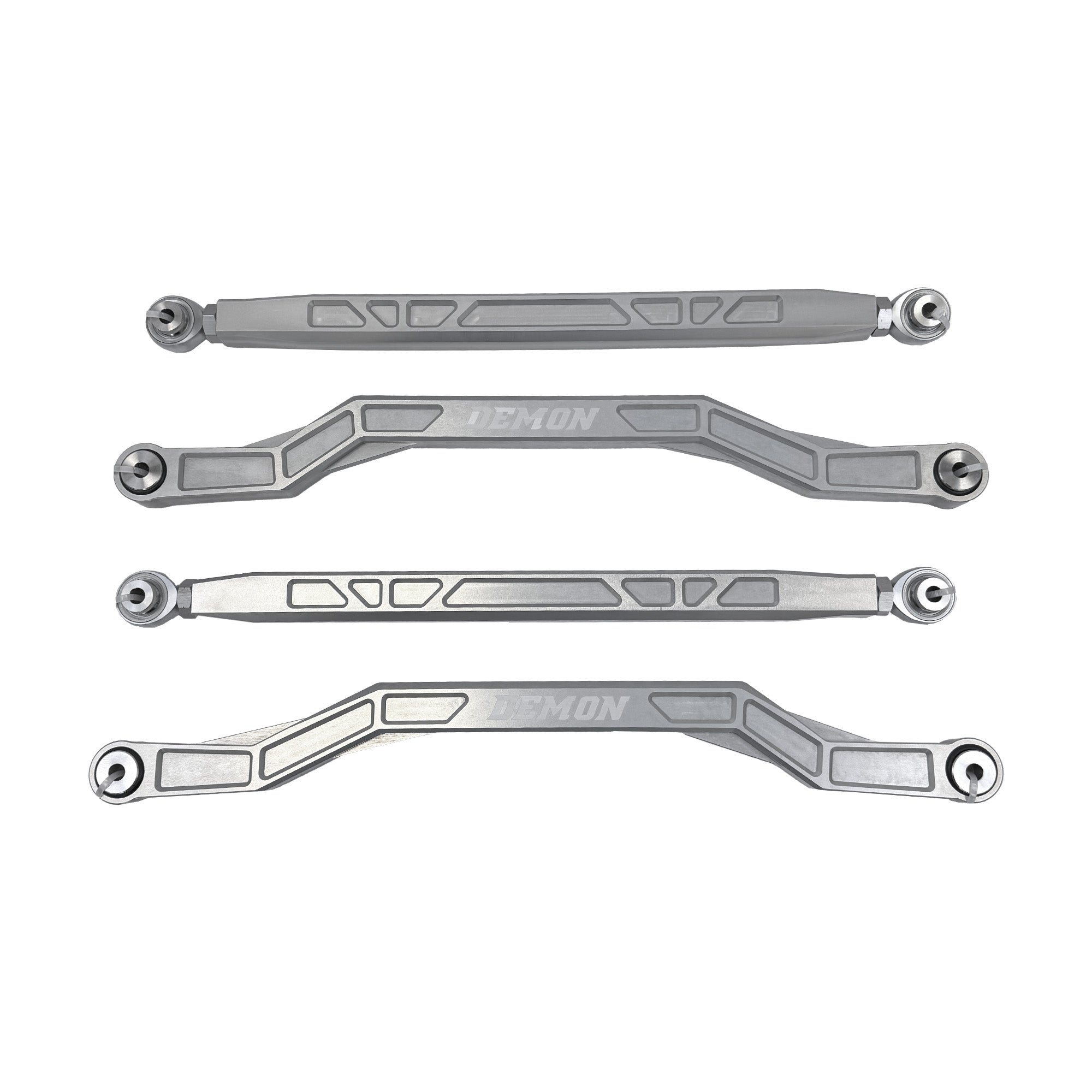

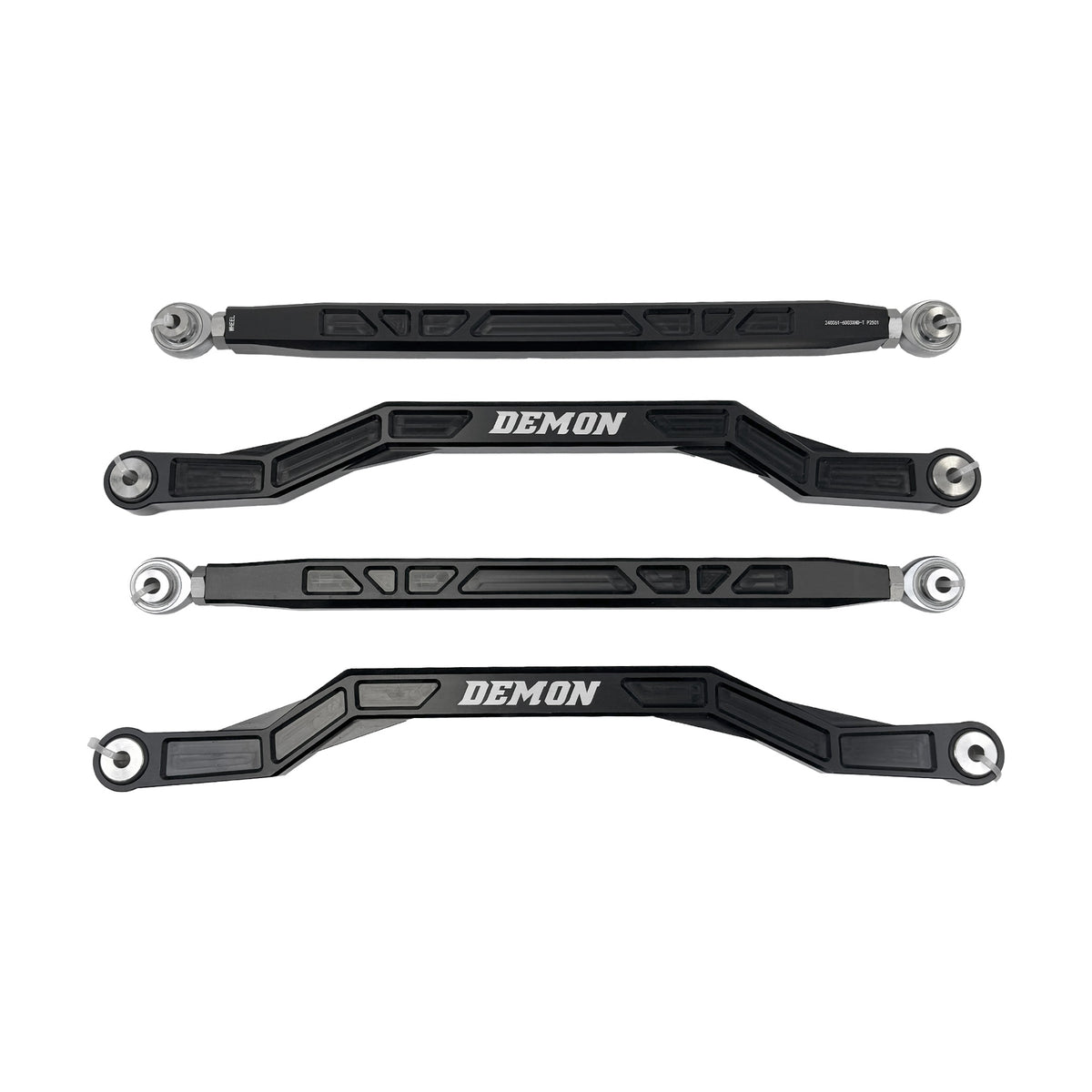

The Demon Powersports X-treme heavy duty race spec radius rods are manufactured using aircraft grade materials and give you an additional clearance for your Side-by-Side with higher strength on uneven terrain. Demon high clearance radius rods are machined from 7075 aluminum grade and hard anodized finish.
• Made from aircraft-grade 7075 Aluminum
• Better ground clearance and strength leads to smoother rides
• Anodized finish resistant to corrosion and wear even when faced with the most challenging conditions
• High-Grade Stainless-Steel hardware and spacers
• Direct Bolt on Replacement
• Right-hand left-hand threads for fast adjustment
• Heat treated 3-piece Chromoly PTFE-lined Heim joints capable of withstanding a radial static load of 18,000 lbs.
• • CNC Machined for Precision Finish
PARR-6003XHD
Polaris RZR Pro XP
- 2020-2024 RZR Pro XP
- 2020-2024 RZR Pro XP 4
Description
The Demon Powersports X-treme heavy duty race spec radius rods are manufactured using aircraft grade materials and give you an additional clearance for your Side-by-Side with higher strength on uneven terrain. Demon high clearance radius rods are machined from 7075 aluminum grade and hard anodized finish.
Features
• Made from aircraft-grade 7075 Aluminum
• Better ground clearance and strength leads to smoother rides
• Anodized finish resistant to corrosion and wear even when faced with the most challenging conditions
• High-Grade Stainless-Steel hardware and spacers
• Direct Bolt on Replacement
• Right-hand left-hand threads for fast adjustment
• Heat treated 3-piece Chromoly PTFE-lined Heim joints capable of withstanding a radial static load of 18,000 lbs.
• • CNC Machined for Precision Finish
Fitment
LEARN MORE ABOUT OUR X-TREME HEAVY DUTY RADIUS ROD RACE SPEC
MATERIAL STRENGTH
Demon Xtreme Heavy Duty tie rods are made from 7075 aluminum,
which is over 70% stronger than the tie rods of same size that are made of 6061,
a commonly used material by our competitors. During our bend tests,
our fully assembled tie rod can withstand over 2,200 lbs load right in the middle,
and bounce back to it's original shape like nothing happened.
It means you don't have to worry about bending,
denting the rods or damaging the threads like you would with 6061 aluminum.
7075 aluminum excels where 6061 would fail.

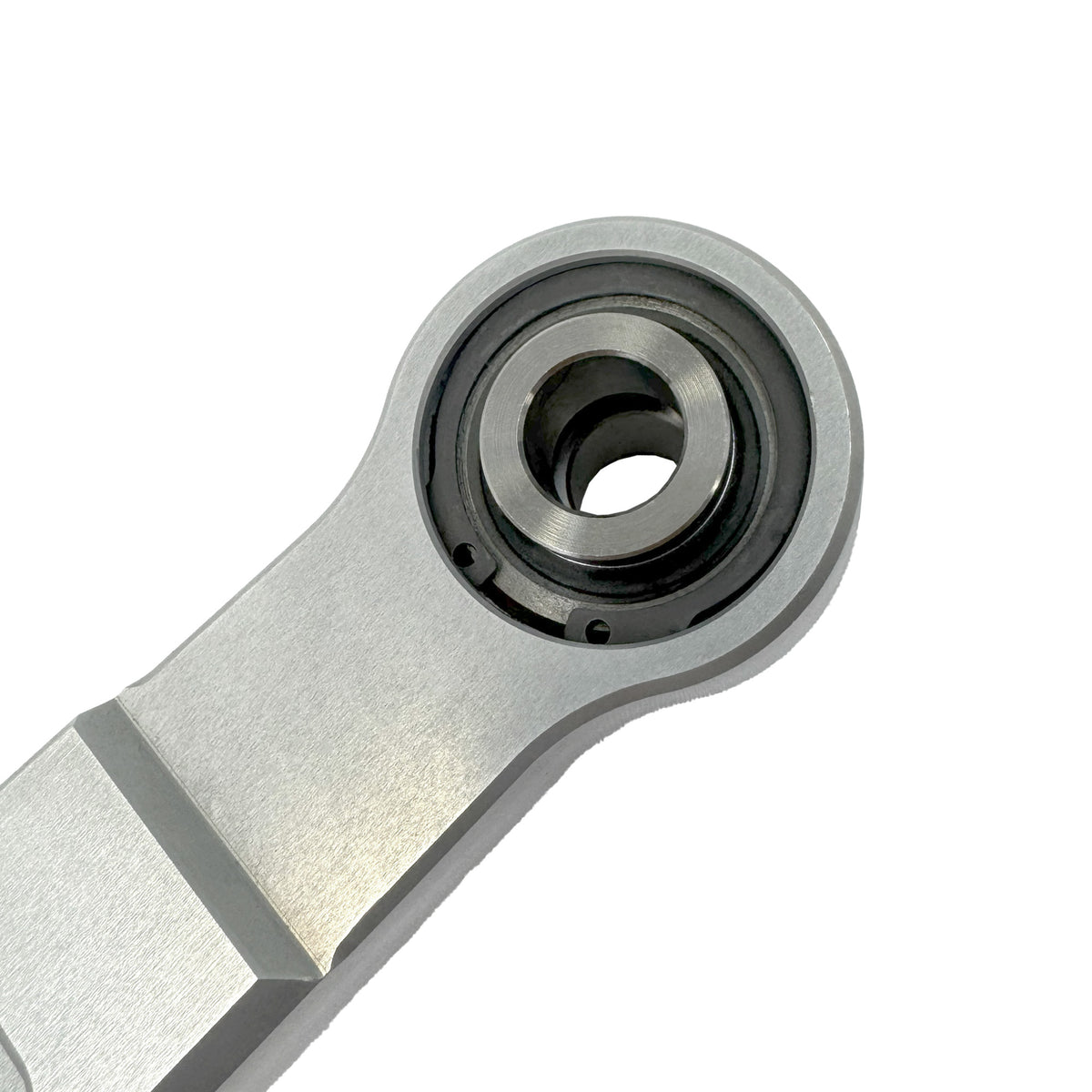

SPHERICAL BEARINGS
Our spherical bearings are built with a high-durability 3-piece assembly design,
delivering maximum strength and reliability. The race is crafted from heat-treated high-strength alloy steel,
while the inner ball is precision-made from hard chrome-plated 52100 steel for superior wear resistance.
Featuring a maintenance-free PTFE insert, these bearings provide smooth,
self-lubricating performance without the need for additional lubrication.
With an impressive radial static load rating of 78,000 lbs, they are engineered to handle extreme demands with unmatched durability.

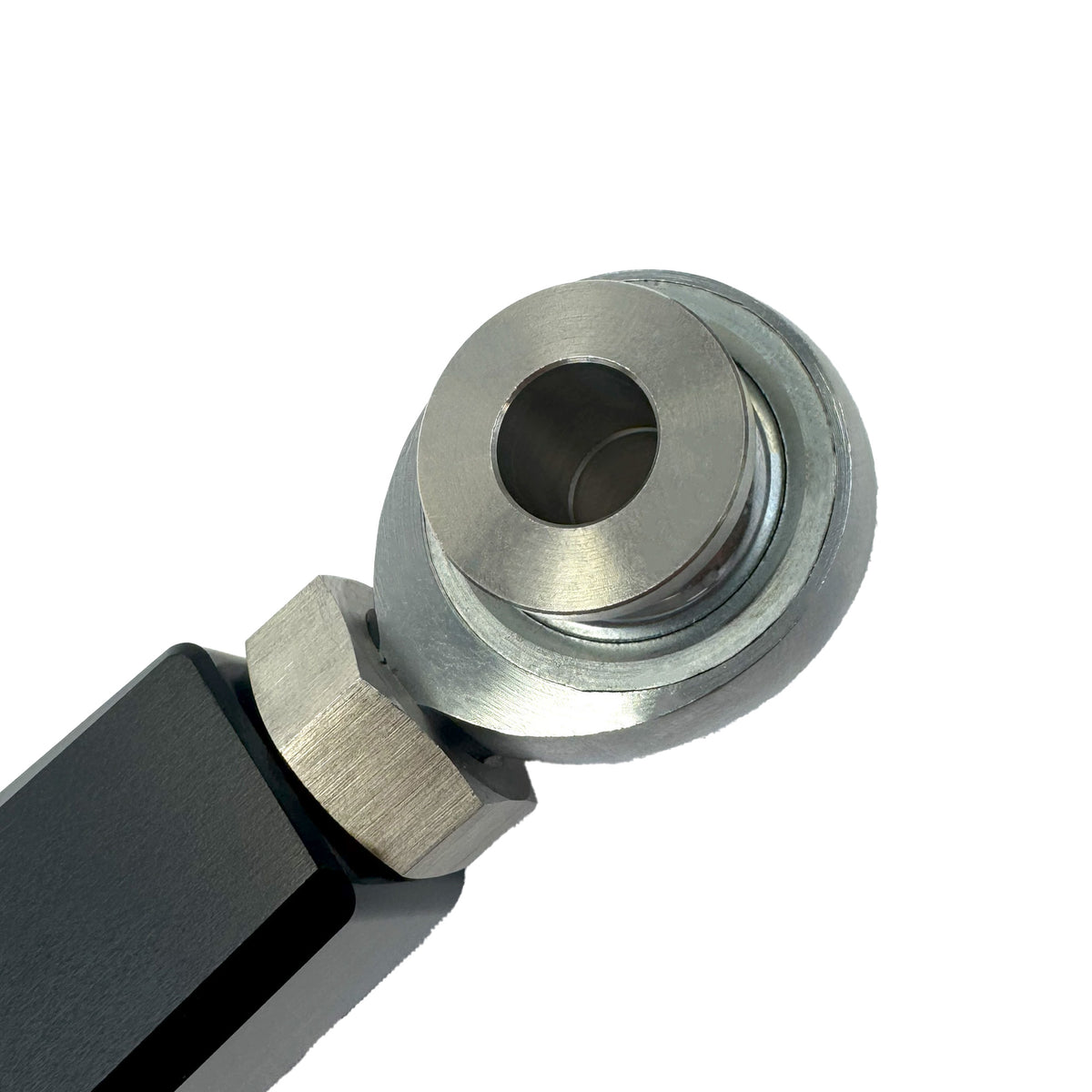

HEIM JOINT
This heim joint is engineered with a high-durability 3-piece assembly design to ensure maximum strength and reliability.
The joint body is constructed from 4135 Chromoly Alloy Steel,
while the inner ball is made from hardened bearing steel that is polished and hard chrome plated for superior wear resistance.
Featuring a maintenance-free PTFE insert, it provides smooth, self-lubricating performance without the need for constant servicing.
With a radial static load rating of 28,080 lbs, this heim joint is built to withstand extreme demands and deliver long-lasting durability.
