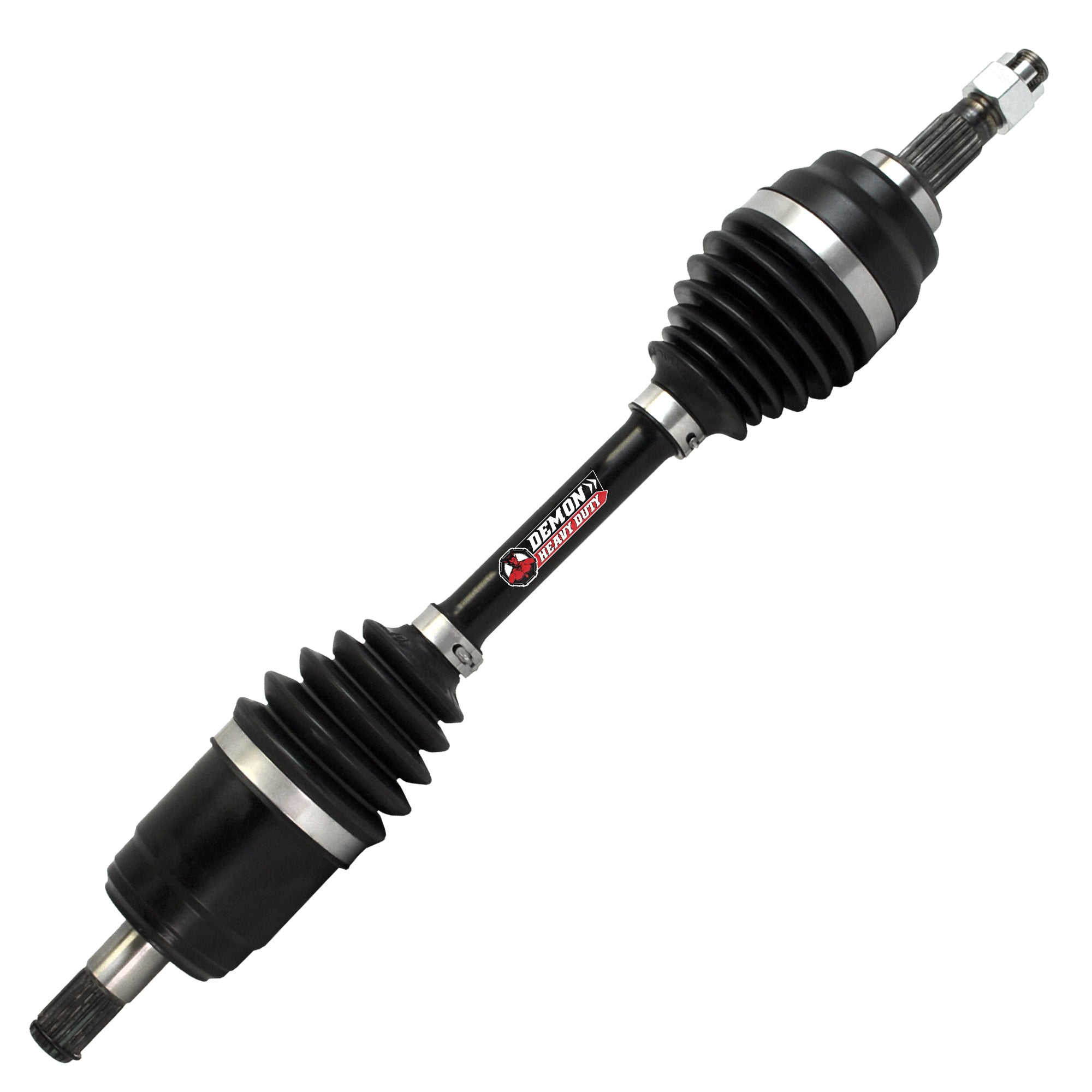

Kawasaki Brute Force Demon Heavy Duty Axle

Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.
Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity.
These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.
Trust in Demon Heavy Duty Axles to keep you riding!!

• The Demon heavy duty axles are equipped with TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, has more fatigue resistant, more puncture resistant, and higher temperature resistant than a standard OEM boot.
• Dual heat treated high strength Chromoly steel shaft, with upgraded inner cage material to 4340 Chromoly Steel.
• Design and test all our Heavy Duty Axle to have 1.5 inches of plunge travel and 40° articulation over terrain on the inboard joint. While the outboard joint can travel 0.5inches and swing from 45°-47° depending on the model.
• Axles use molybdenum grease to provide low friction and smooth motion. Trust in Demon Heavy Duty Axles to keep you riding!
• These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately.
• Please review all product information to ensure that this product is compatible with your unit. This item comes with 1 year warranty.

Fitment Data:

PAXL-1106HD

OEM Ref : 59266-0007 59266-0024

Fitment Data:

PAXL-1107HD

2005 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2006 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2006 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2006 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2007 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2007 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2007 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2008 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2008 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2008 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2009 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2009 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2009 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2010 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2010 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2011 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2011 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2011 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2012 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2012 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2012 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2012 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2013 Kawasaki KVF650 Brute Force 4x4 Front Left, Front Right

2013 Kawasaki KVF650 Brute Force 4x4i Front Left, Front Right

2013 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2013 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2014 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2014 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2015 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2015 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2016 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2016 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2016 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2017 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2017 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2017 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2018 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2018 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2018 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2019 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2019 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2019 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2020 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2020 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2020 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2021 Kawasaki KVF750 Brute Force 4x4i Front Left, Front Right

2021 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2021 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2022 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2022 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

2023 Kawasaki KVF750 Brute Force 4x4i EPS Front Left, Front Right

2023 Kawasaki KVF750 Brute Force 4x4i EPS Camo Front Left, Front Right

Fitment Data:

PAXL-1112HD

2006-2013 Kawasaki KVF650 Brute Force 4x4i Rear Left,Rear Right

2005-2021 Kawasaki KVF750 Brute Force 4x4i Rear Left,Rear Right

2012-2023 Kawasaki KVF750 Brute Force 4x4i EPS Rear Left,Rear Right

2016-2023 Kawasaki KVF750 Brute Force 4x4i EPS Camo Rear Left,Rear Right
