A lift kit can change the way your Honda Pioneer 500 handles uneven trails, clears obstacles, and moves through demanding terrain. But raising a machine also changes the working position of its suspension and drivetrain components. One part that deserves attention after a lift is the axle.
Your axle transfers power from the drivetrain to the wheels while moving with the suspension. When a lift changes the axle's operating angles, the joints must continue working through that movement without binding. That is why choosing the right Honda Pioneer 500 HD lift kit axle matters when building a machine for more demanding off-road use.
How a Lift Kit Changes Axle Demands
A lifted Pioneer 500 does not operate exactly like a stock machine. Changes in suspension height can alter axle angles and the amount of movement required from the CV joints. The axle still needs to transfer power while the suspension responds to ruts, uneven ground, and changing terrain.
If the axle is not suited to the lift configuration, its joints may have difficulty accommodating the operating angles and movement involved. That can contribute to binding, accelerated wear, or driveline problems, depending on the setup and riding conditions.
The solution is not simply to choose an axle because it is labeled heavy duty. The important step is matching the axle to the specific lift kit, model, and installation requirements.
What Makes the Demon Heavy Duty Lift Kit Axle Different?

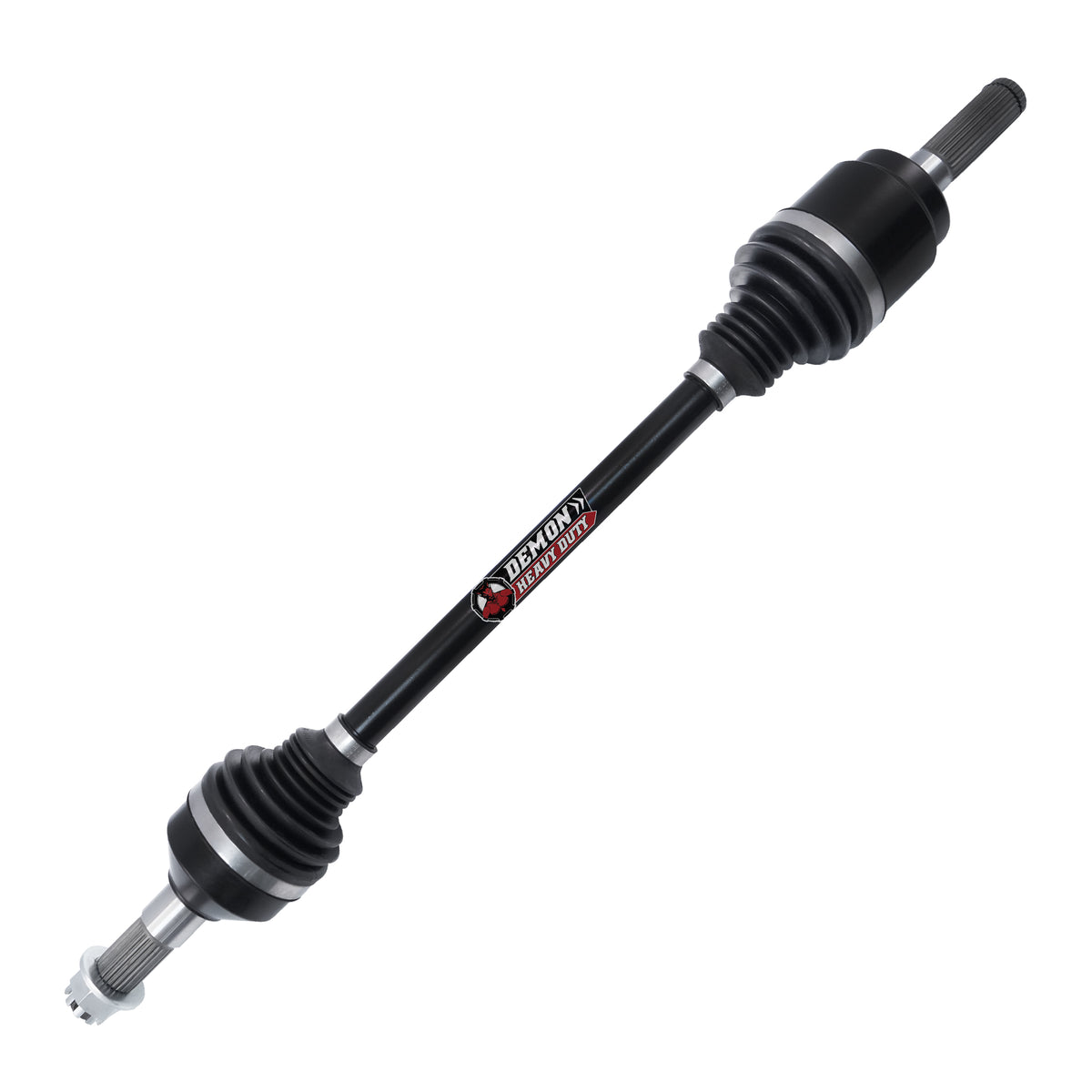

The Demon Heavy Duty Lift Kit Axle for Honda Pioneer 500 is designed for a specific lifted application. Demon Powersports lists compatibility with the 5-inch Joe Kocienski Lift Kit, so riders should confirm that their actual lift configuration matches before ordering.
The axle is built around several features intended to support strength, movement, and durability.
Dual heat-treated chromoly shaft: The shaft uses high-strength chromoly steel with a dual heat-treatment process. Its construction is designed to support the demands placed on the axle during off-road use.
4340 chromoly inner CV cage: The inner CV cage uses 4340 chromoly steel, providing a stronger component within the joint assembly. The CV joint must continue transferring power as the suspension moves, making its construction an important part of the overall axle design.
Dual-plunge design: The axle uses a dual-plunge design that allows additional in-and-out movement as the suspension travels. Demon specifies approximately 1.5 inches of plunge travel and 40-degree articulation at the inboard joint. Outboard joint articulation varies by model and can range from 45 to 47 degrees.
TPEE protective boots: The thermoplastic polyester elastomer boots are designed to offer resistance to fatigue, punctures, tears, and temperature changes. This matters when riding through mud, brush, rocks, and other conditions that can expose axle boots to damage.
Molybdenum grease: The CV joints use molybdenum grease to help reduce friction and support smooth joint movement.
Together, these design features make the axle worth considering for a Pioneer 500 build that uses the specified lift kit.
Why Axle Fitment Matters More Than the Product Name
Not every heavy-duty axle fits every lifted Honda Pioneer 500. Lift height alone does not tell the whole story. The lift kit's design, axle position, model configuration, and required axle dimensions all matter.
Before buying, check the exact year and configuration of your Pioneer 500, confirm the lift kit manufacturer and model, and select the correct axle position and part number. The Demon product listing identifies the 5-inch Joe Kocienski Lift Kit as its application. Do not assume it will fit another 5-inch lift simply because the lift height is the same.
You can review the Honda Pioneer 500 Demon Heavy Duty Lift Kit Axle to check the available options and product details before ordering.
Signs Your Lifted Pioneer 500 Needs Axle Attention
Pay attention to clicking or popping sounds during turns, unusual vibration under acceleration, damaged CV boots, or grease thrown around the axle area. These symptoms can indicate axle or CV joint trouble, although other drivetrain components can produce similar warning signs.
Inspect the boots and surrounding components regularly, especially after muddy rides or trips through rocky terrain. If a boot is torn, address it promptly because dirt and water can contaminate the joint and compromise lubrication.
If you notice binding, unusual resistance, or recurring axle problems after installing a lift, have the suspension and driveline geometry checked. A heavy-duty axle cannot correct every issue caused by incorrect installation or incompatible components.
